Product features

All the graphics and controls a race-night operator needs.

SpeedGFX is packaged as a local broadcast server with a browser-based operator panel and overlay URLs for OBS / vMix.

SpeedGFX side timing tower qualifying overlay with driver names and lap times
Side Timing Tower qualifying viewQualifying tower with best-time callouts and sponsor-ready header/footer zones.
SpeedGFX top timing graphics overlay showing qualifying order, numbers, names, and gaps
Top Timing GraphicsFull-width top timing strip built for OBS and vMix browser sources.
SpeedGFX starting grid overlay for Heat 1 with rows, driver names, hometowns, and car numbers
Starting GridTwo-up heat lineup graphic for pre-race presentation.
SpeedGFX side timing tower overlay showing laps to go, running order, and leader gap column
Side Timing Tower race viewRace-status tower with laps-to-go banner and timing-fed gaps.

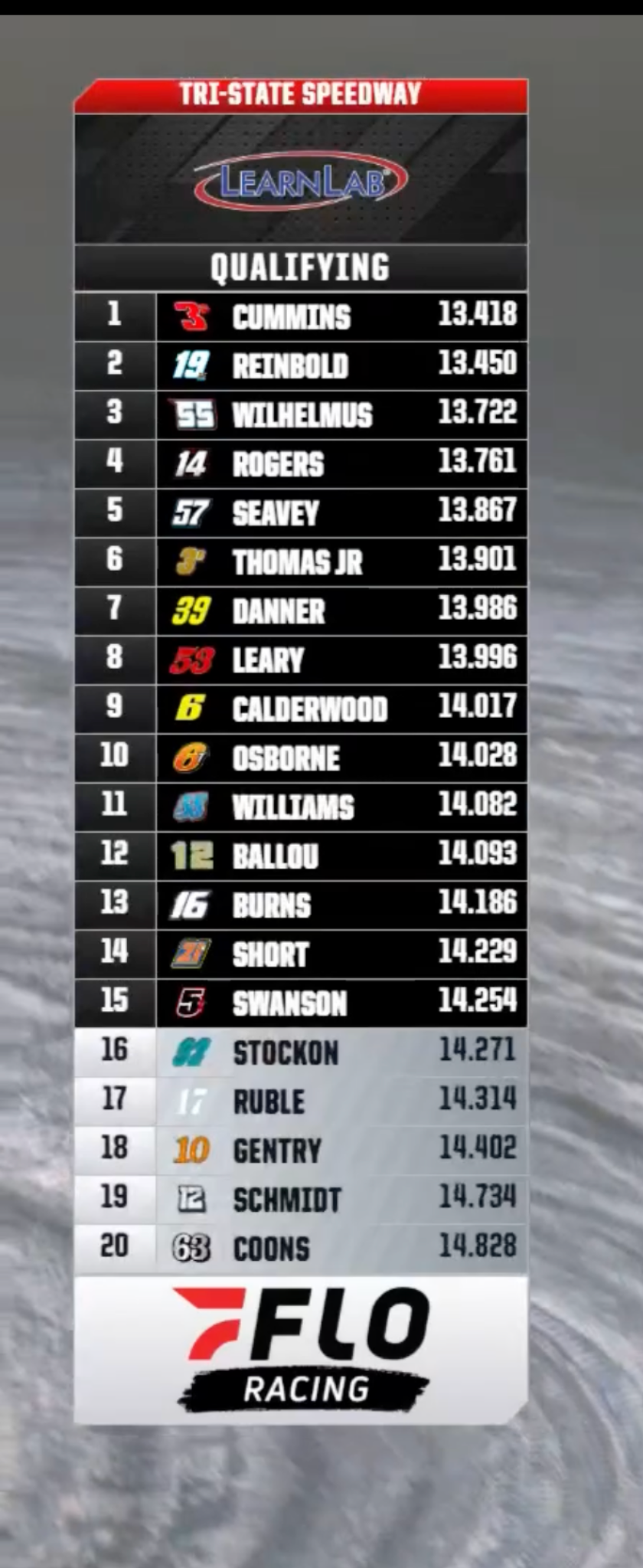

Reference racing leaderboard design with qualifying times
Reference styleReference-style leaderboard example for visual direction and product context.

Live timing graphics

Race data that stays on air without babysitting

SpeedGFX connects to RMonitor or Live Timing CSV feeds, then drives position, gap, lap, class, and flag-aware graphics across broadcast-ready browser sources.

  • RMonitor support for common timing systems
  • Live Timing CSV support for MyRacePass-style feeds
  • Top Timing Graphics flag bar and Side Timing Tower lap status
  • Broadcast delay slider for delayed streams

Show package

Every key circle-track graphic in one product

Use the top timing graphics and side timing tower during green flag coverage, show starting grids before the race, rotate results after the checkered, and add lower thirds, weather, title cards, and info box reads when the show needs them.

  • Top Timing Graphics
  • Side Timing Tower
  • Starting Grid
  • Results
  • Lower Third
  • Title Card
  • Weather
  • Info Box

Race-night workflow

Built for operators under headset pressure

The operator panel groups timing, scoreboard, logos, presets, and licensing into clean tabs. Changes save automatically, presets recall a track setup, and show/hide controls update instantly.

  • Five-tab operator panel
  • Event presets
  • Sponsor logo rotation
  • Color scheme picker
  • One-click show/hide controls

Licensing and offline use

Activate before travel. Broadcast when the internet disappears.

SpeedGFX activates online, shows the active package and customer name, and caches an offline grace period so race-night internet is not a single point of failure.

  • Basic, Advanced, and Pro packages
  • Seat activation and deactivation
  • 30-day offline grace after activation
  • Upgrade prompts for additional packages

Overlay inventory

Browser sources for the graphics your production actually uses.

Top Timing Graphics1920×1080 browser source
Side Timing Tower1920×1080 browser source
Starting Grid1920×1080 browser source
Results1920×1080 browser source
Lower Third1920×1080 browser source
Title Card1920×1080 browser source
Info Box1920×1080 browser source
Weather1920×1080 browser source
